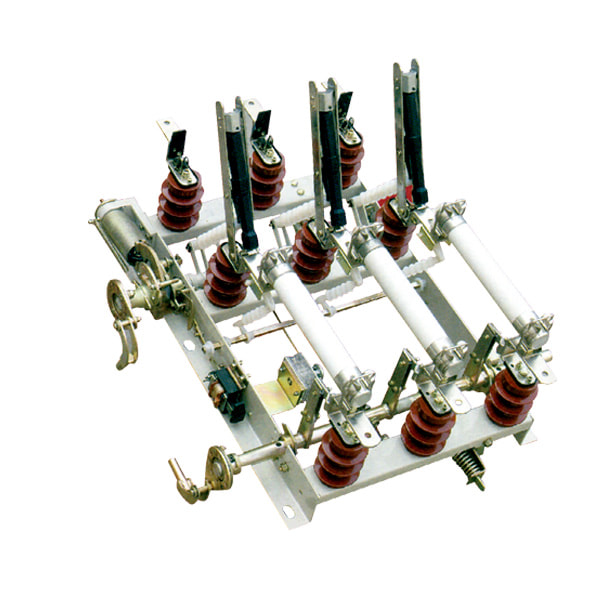

FN5-12R (L) type indoor AC high-voltage load switch-fuse combination is suitable for 50HZ, 12KV electrical network, as the load current and switch current for use. The load switch with a fuse can cut off the short-circuit current for the protection of the switch. The load switch can be equipped with CS6-1 manual operation mechanism, CS port manual or CJ port electric operation mechanism dedicated to this product.

Model FN7-12 indoor high-voltage load switch and fuse combination is a gas-producing indoor high-voltage load switch, which is applicable to the three-phase AC power system with AC 50Hz and rated voltage 12kV, and is used to break the load current and close the short-circuit current.

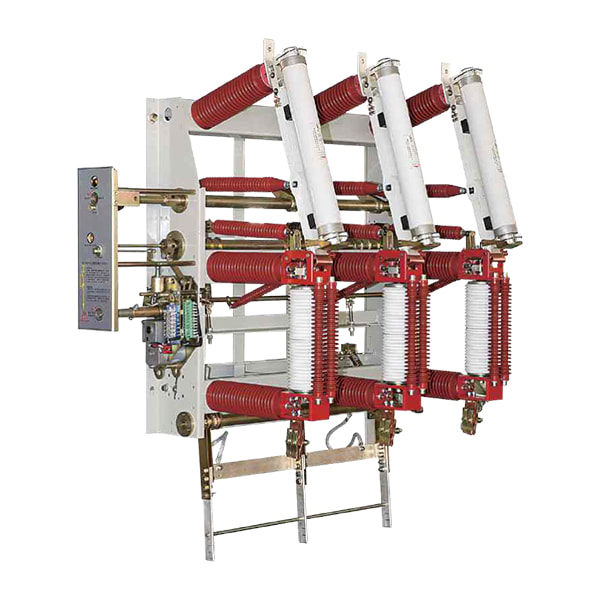

FKN12 pneumatic load switch, FKRN12A-12D series pneumatic load switch-fuse combination electrical appliance, suitable for 12kV and below three-phase distribution system, as transformers, cables, overhead lines and other power equipment control and protection; It is especially suitable for terminal substations and box-type substations of urban and rural networks. It is also suitable for the control and protection of ring network and double radiation power supply unit. FKN12 series pneumatic load switches can split load current and overload current. FKRN12A-12D series pneumatic load switch-fuse combination can split load current, overload current, and short-circuit current of the breaking line.

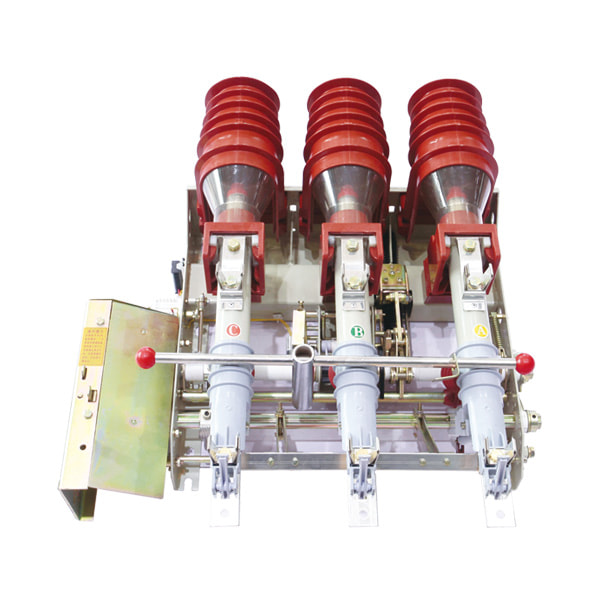

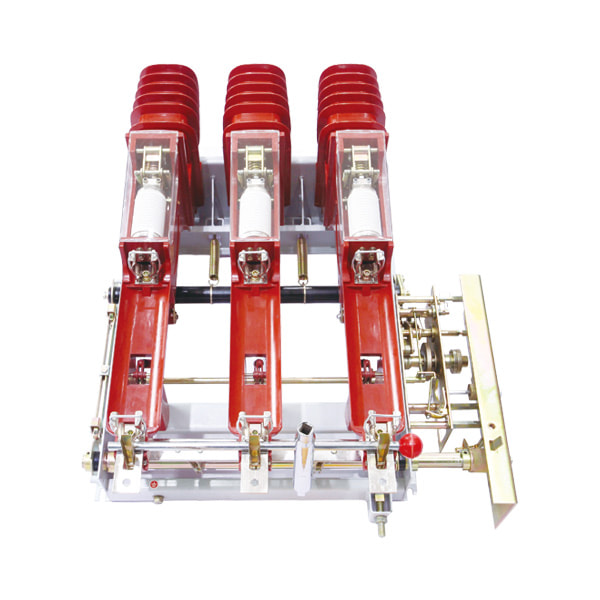

FZN25-12/FZ(R)N25-12D type indoor high voltage vacuum load switch and FZRN25-12D/T200-31.5 type indoor high voltage vacuum load switch-fuse combination electrical appliances are three-phase AC 50Hz, 12kV power distribution system control and protection devices, products without oil, non-toxic, no fire and explosion risk. Widely used in industrial and mining enterprises and urban buildings distribution power stations and other places. The latter has a more reliable protective effect on electrical equipment such as transformers than circuit breakers, and is especially suitable for ring networks, double auxiliary injection power supply units and box-type substations. FZN25-12D630-20 type indoor high-voltage vacuum load switch (hereinafter referred to as the load switch) is a three-phase AC 50Hz, rated voltage 12kV indoor device, suitable for industrial and mining enterprises distribution offices and substations and other places, as the protection and control of electrical facilities, used to divide the load current, closed-loop current, no-load transformer and cable charging current. It has a ground switch related to the ability to close the short circuit current. The operating mechanism can be manual and electric, which is easy to achieve the three-remote control requirements of the power system. FZRN25-12D200-31.5 type indoor high-voltage vacuum load switch-fuse combination (hereinafter referred to as the combination) is a three-phase AC 50Hz, rated voltage 12kV indoor device, suitable for industrial and mining enterprises distribution offices and substations and other occasions, for load control and short-circuit protection. It also has a ground switch related to the ability to close the short circuit current. The operating mechanism can be manual and electric, which is easy to achieve the three-remote control requirements of the power system.

This type of high-voltage vacuum load switch and combined electrical appliance is suitable for three-phase AC 40.5kV, 50HZ power system, or with the power distribution equipment and ring network switchgear, combined power station, etc., widely used in wind power generation. Cheng network construction and transformation projects, industrial and mining enterprises, high-rise buildings and public facilities, etc., can be used as a ring network power supply unit or terminal equipment, which plays a role in the distribution, control and protection of electric energy. The technical performance of the product meets the requirements of GB16926-1997 "AC high voltage load switch-fuse combination electrical appliance" and IEC420 "AC High voltage load switch-fuse combination electrical appliance". This product has the advantages of large breaking capacity, safety and reliability, long electrical life, frequent operation, compact structure, small size, light weight, and basically no maintenance. It has the ability to break the rated current, overload current, short circuit current and prevent the equipment from running without phase, the switch has an obvious isolation fracture, and is equipped with a ground switch and an electric spring mechanism related to the closing capacity, and has the remote control ability.

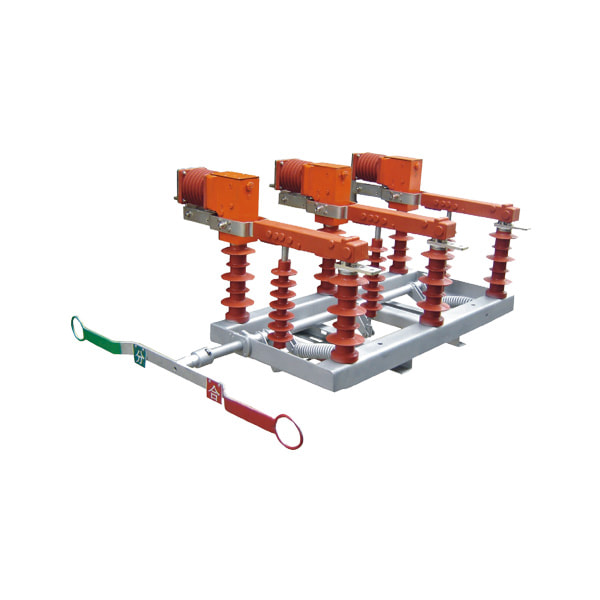

FZW□-12 Outdoor high voltage isolation vacuum load switch is a high voltage electrical appliance product jointly developed by our company and High voltage Institute of Liaoning Electric Power Research Institute. After strict type test and long-term trial run assessment, all the technical performance indicators have reached GB3408 and IEC standards. Suitable for rated voltage 12kV, rated current 630A, three-phase AC 50Hz power supply network.

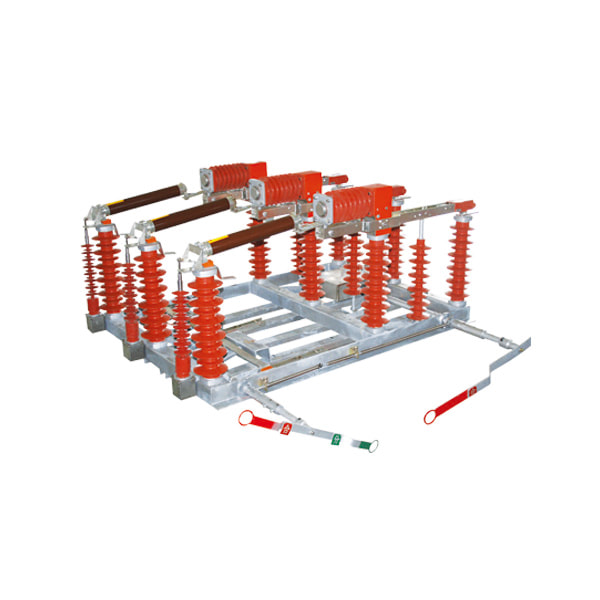

FZW□-40.5 Outdoor high pressure isolation vacuum load switch frame is made of stainless steel material and hot dip galvanized carbon steel with UV protection coating, the body can operate normally in outdoor environment, and the parts are made of stainless steel material to ensure the durability, stability and waterproof, salt spray and other properties of the load switch. The force is large, safe and reliable, long electrical life, frequent operation, less maintenance, obvious relay port and so on. Operation mode adopts single-lever manual operation, also can adopt electric, remote control operation.
